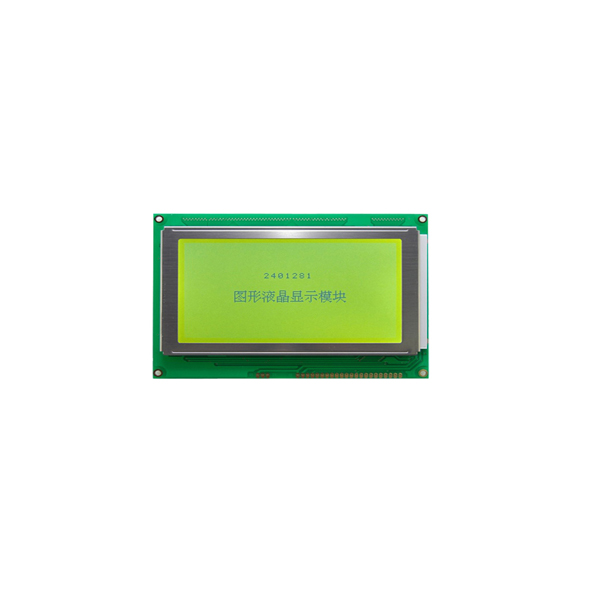

图形模组240128B
| 产品名: | 图形模组240128B |
|---|---|
| Product name | 240128 LCD module |
| Model number | JRX240128B |
| LCD type | 240128 LCD module |
| Outline size | 144.0 x 104.0 x 13.2mm |
| Viewing size | 114.0 x 64.0mm |
| Dots size | 0.40 x 0.40mm |
| Backlight | Yellow-green |
| Interface | Parrallel |
| Operation Temp. | -20~ +70 ℃ |
| Storage Temp. | -30~ +80 ℃ |
| Driver IC | T6963C |
| Technology | COB |
| Operation voltage | 5v or 3.3v |
产品详情
