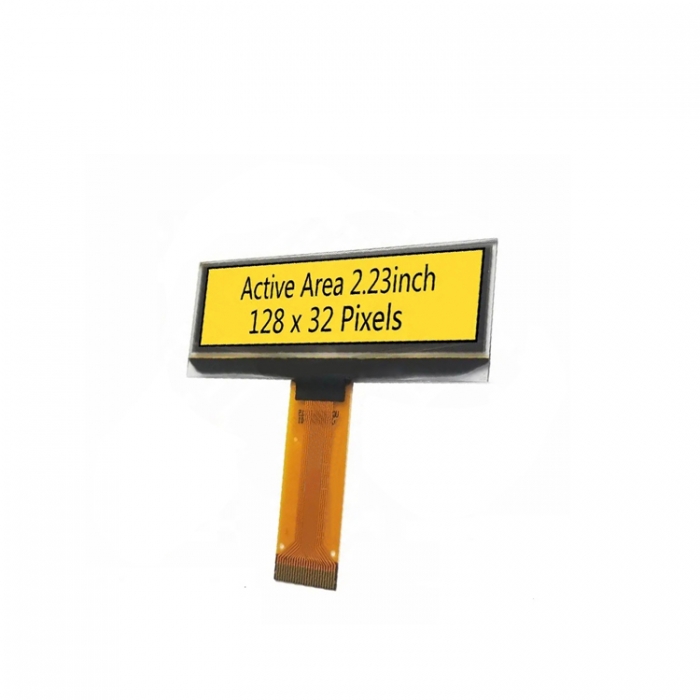

2.23寸OLED

产品名:2.23寸OLED
产品名称2.23寸OLED显示屏
型号JRXOL2.23MD
点阵模式128 x 32
显示模式Passive Matrix
外形尺寸62.00 x 24.00 x 2.00mm
可视区域55.02 x 13.10mm
显示颜色单色( 白/黄/ 蓝 )
InterfaceParrallel, 4-wire SPI, I2C
Driver duty1/32 duty
Driver ICSSD1309
Operating Temperature-40 ~85°
Operation voltage3-5V
WeightTBD

产品详情

2.23寸OLED显示屏
