OLED 2.8 inch
| Name: | OLED 2.8 inch |
|---|---|

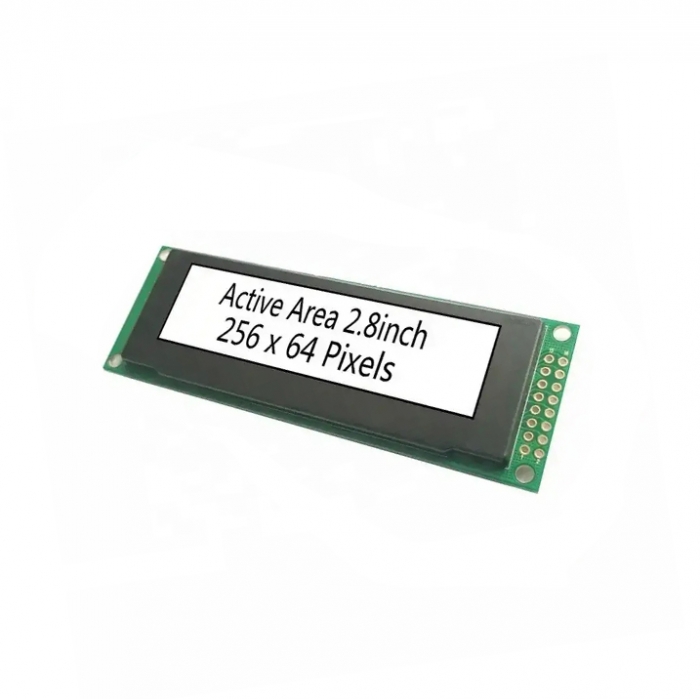

| Product name | 2.8 inch OLED display module |
| Model number | JRXOLM2.8WG |
| Dots format | 256 x 64 |
| Outline size | 97.0 x 32.5 x 6.3mm |
| Active area | 69.104 x 17.264mm |
| Pixel pitch | 0.30 x 0.30 mm |
| Display mode | Passive matrix |
| Display color | Monochrome with 16 gray scales( white/ yeloow / blue) |
| Driver duty | 1/64 duty |
| Driver IC | SSD1322 |
| Operating voltage | -40 ~85° |
| Interface | Parallel，3-/4- wire SPI |
| Weight | TBD |
Product Detail
2.8 inch OLED display modulePre:OLED 1.69 inch Next:OLED 0.96 inch
