OLED 3.12 inch

Name:OLED 3.12 inch
Product name3.12 inch PMOLED display
Screen size3.12 inch
Display resolution256 x 64
Display modePassive Matrix
Display ColorMonochrome ( White )
Panel size88.00(W) x 27.80（H）x 2.00(T)
Active area76.78（W）x 19.18 (H)mm
Pixel Pitch0.30 x 0.30 (mm）
Pixel size0.28 x 0.28 (mm)
Number of Pin30pin
Driver ICSSD1322 with 16 gray scale
Interface8-bit 68XX/80XX Parallel, 4-wire SPI
Weight9.95(g)

Product Detail

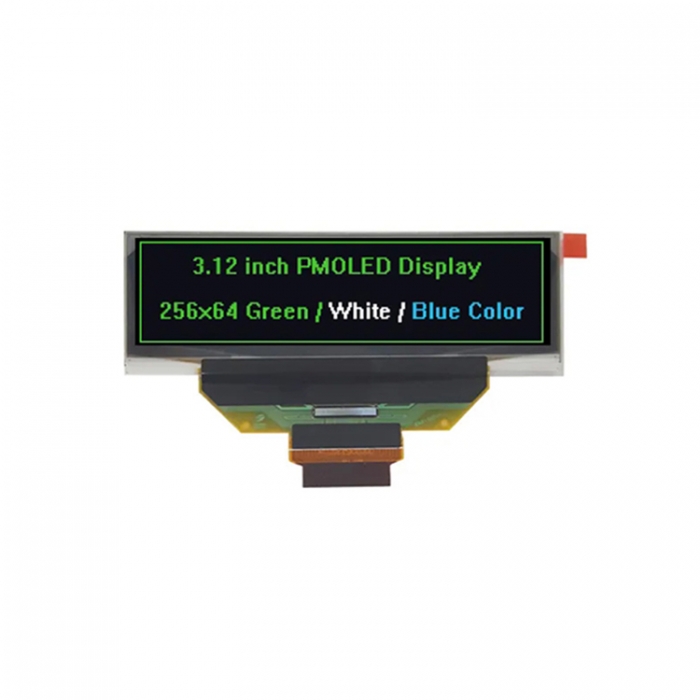

3.12 inch OLED display
