OLED 2.23 inch

Name:OLED 2.23 inch
Product name2.23 inch OLED module
Model numberJRXOL2.23MM
Dots format128 x 32
Display modePassive Matrix
Outline size66.5 x 35.0 x 7.8mm
Active area55.02 x 13.1mm
Pixel pitch0.43 x 0.41mm
InterfaceParrallel, 4-wire SPI, I2C
Display colorMono(white/yellow/green/blue)
Driver ICSSD1305
Driver duty1/32 duty
Operation temperature-40 ~ 85°
Operation voltage3-5V

Product Detail

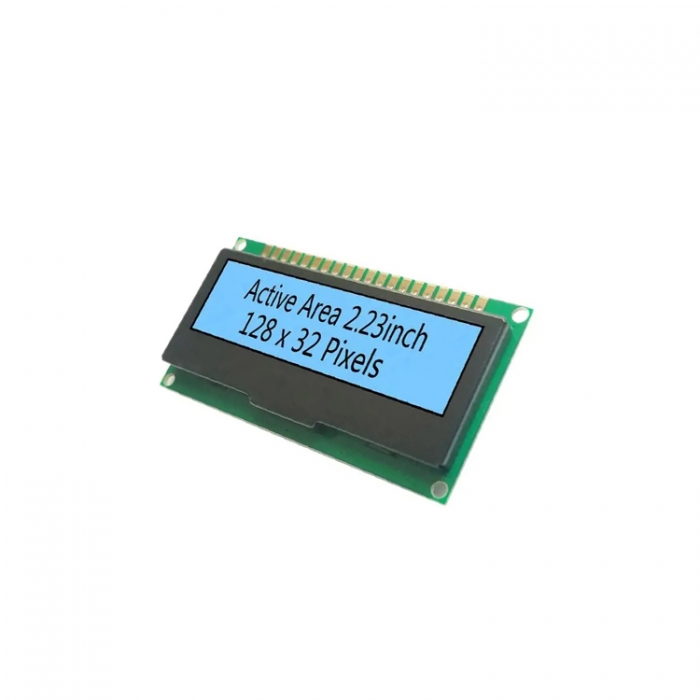

2.23 inch OLED module
