OLED 1.54 inch
| Name: | OLED 1.54 inch |
|---|---|

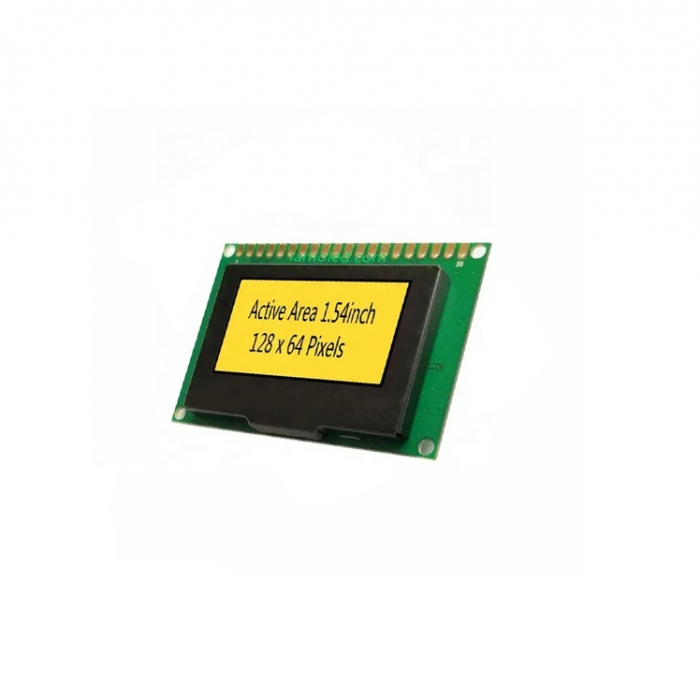

| Product name | 1.54 inch OLED module |
| Model number | JRXOL1.54MM |
| Dots format | 128 x 64 |
| Display mode | Passive Matrix |
| Outline size | 57.5 x 39.45 x 7.8mm |
| Active area | 35.052 x 17.516mm |
| Pixel pitch | 0.274 x 0.274mm |
| Interface | Parrallel, 4-wire SPI, I2C |
| Driver duty | 1/64 duty |
| Driver IC | SSD1309 |
| Operating Temperature | -40 ~85° |
| Display color | Monochrome ( White/ blue / Yellow ) |
| Operation voltage | 3-5V |
Product Detail
1.54 inch OLED modulePre:OLED 0.96 inch Next:OLED 2.23 inch
