OLED 3.12 inch

Name:OLED 3.12 inch

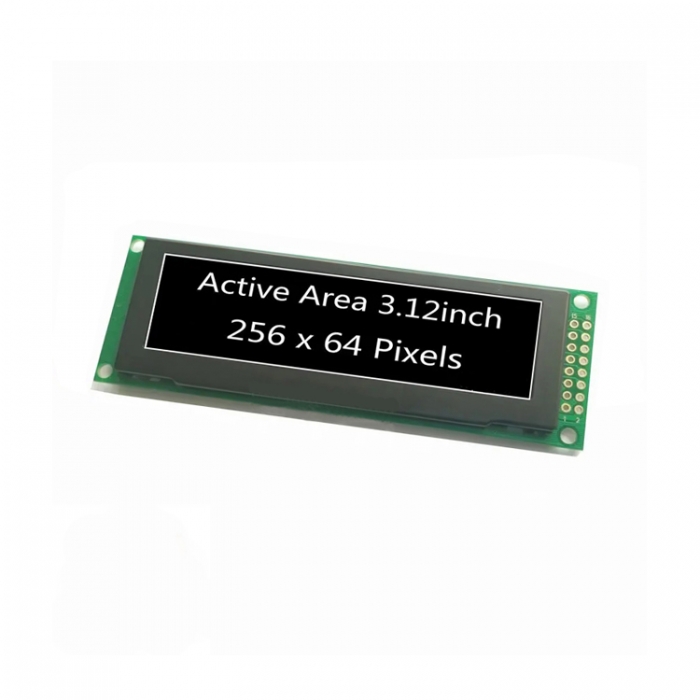

Product name3.12 inch OLED module
Model numberJRXOL3.12MM
Dots format256 x 64
Display modePassive Matrix
Outline size100.5 x 33.5 x 6.3mm
Active area76.78 x 19.18mm
Pixel pitch0.3 x 0.3mm
InterfaceParrallel, 4-wire SPI
Display colorMono(white/yellow/green/blue)
Driver ICSSD1322
Driver duty1/64 duty
Operation temperature-40 ~ 85°
Operation voltage3-5V

Product Detail

3.12 inch OLED module
