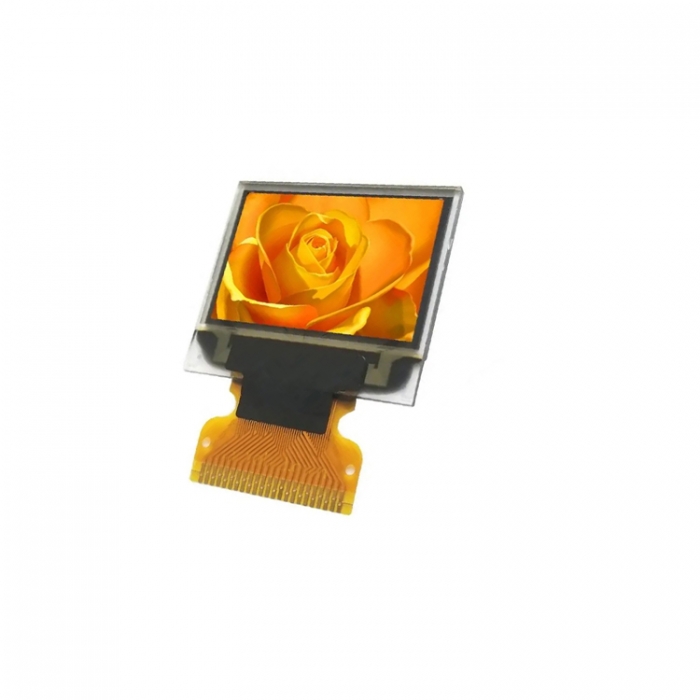

OLED 0.95 inch

Name:OLED 0.95 inch
Product name0.95 inch color OLED display
Model numberJRXOL0.95C
Dots format96 x 64
Outline size25.70 x 22.2 x 1.45mm
Active area20.14 x 13.42mm
Pixel pitch0.07 x 0.21mm
Display modePassive matrix
InterfaceParrallel，4-wire SPI
Driver duty1/64 duty
Display color65,536 colors （ Maximum）
Operating Temperature-40 ~85°
Driver ICSSD1331Z
Operation voltage3-5V

Product Detail

 0.95 inch color OLED display
