OLED 1.54 inch

Name:OLED 1.54 inch
Product name1.54 inch OLED display
Model numberJRXOL1.54M
Dots format128 x 64
Display modePassive Matrix
Outline size42.04 x 27.22 x 1.45mm
Active area35.052 x 17.516mm
Pixel pitch0.274 x 0.274mm
InterfaceParrallel, 4-wire SPI, I2C
Operation Temp.-40 ~ 85 °
Driver ICSSD1309
Driver duty1/64 duty
Display colorMonochrome ( White/ blue / Yellow )
Operation voltage3-5V

Product Detail

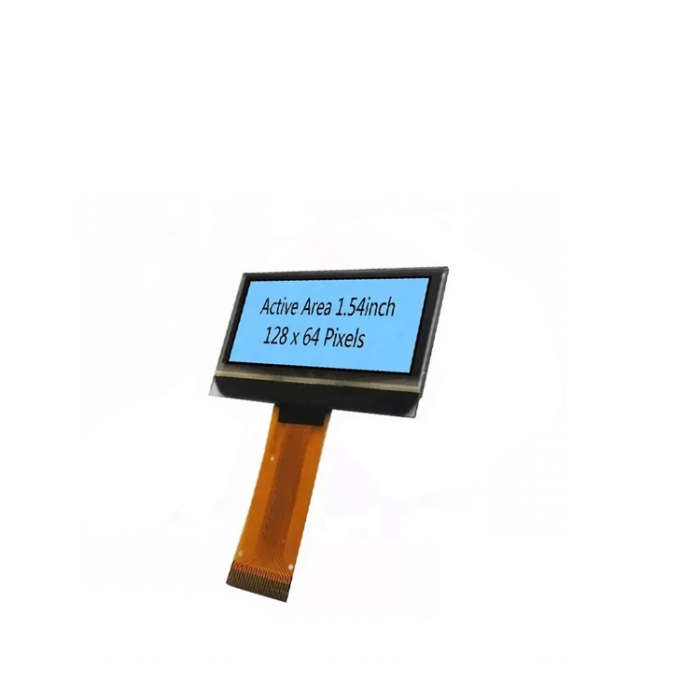

1.54 inch OLED display
